The Pace Di4001 was the launch box for ntl digital cable television on the Langley platform; this box is known as generation 'A'. A second generation, 'B', is modelled on the A specifications below but has RGB output in place of S-Video and has no phono outputs. Additionally, the B boxes do not have a second card slot - the slot was originally intended for smart cashcards.



Specifications
General:
  • Operating Voltage: 230V, 50Hz
  • Power Consumption: 40W maximum
  • Weight: 4.0kg
  • Width x Height x Depth: 380mm x 75mm x 275mm
  • UHF Modulator: PAL I, Channel 50-69, default 65
  • Operating Tº range: 0ºC - +40ºC
  • Storage Tº range: -20ºC - + 60ºC
Rear Panel (first generation boxes):
  • Mains input: IEC 83 2-pin reversible
  • RF Output: IEC 169-24 male
  • Mono Audio: Phono
  • Video: Phono
  • Stereo Audio: Phono
  • VCR Out: SCART Composite video in/out, audio L/R in/out
  • TV Out: SCART Composite video out, S-Video out, audio L/R out
  • IR Out: Stereo mini-jack 3.5mm; +5V 500mA max.
  • IR In: Stereo mini-jack 3.5mm; +5V 50mA max.
  • Ethernet IEEE802.3: RJ-45 female
  • RS-232 DCE Serial: DB-9 female
  • Parallel IEEE 1284: 25-way female D-type
  • Cable In: F-type female
Hardware:
  • ntl Platform
  • DVB-RC DAVIC Cable Modem
  • 2D graphics engine, providing hardware acceleration of 5 planes, 16 bit colour depth, alpha blending (9 planes)
  • JPEG, GIF and IFrame hardware decoding
  • MPEG-2 audio decoding (Musicam standard)
  • CPU: MIPS Series 80, 32-bit RISC primary processor
  • 2-8MB Flash RAM, 2-8MB data DRAM, 2-4MB graphical DRAM, 128KB RAM
Images
The following images (most courtesy of Jeremy Hall) of the set-top-box are available:

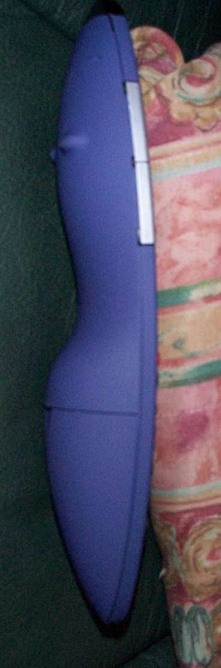

  • Remote Control: 1 - 2 - 3

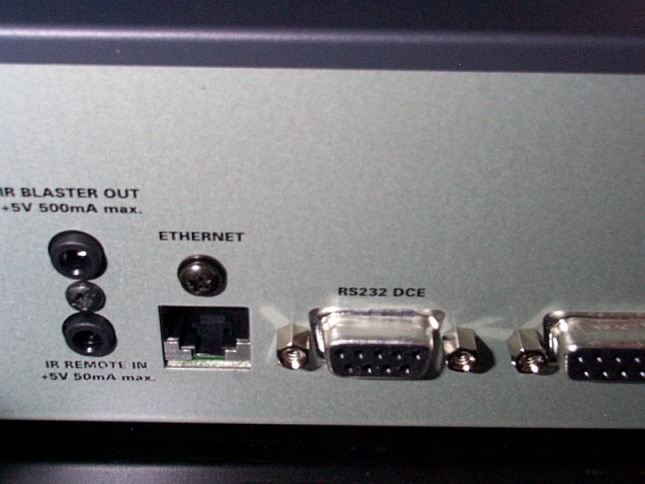

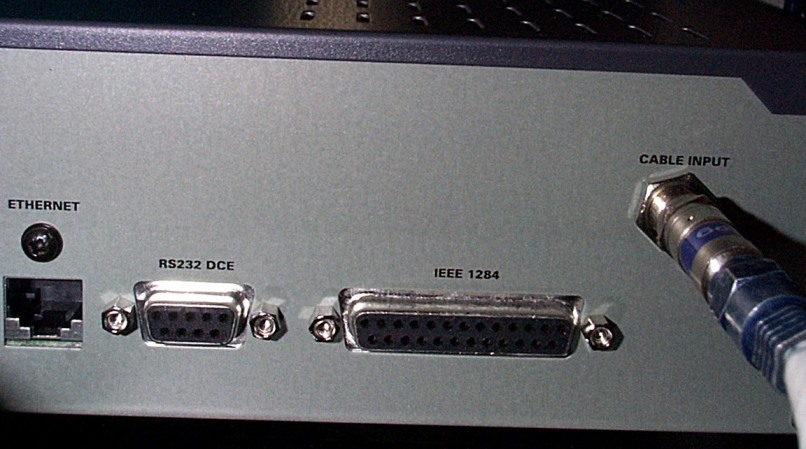

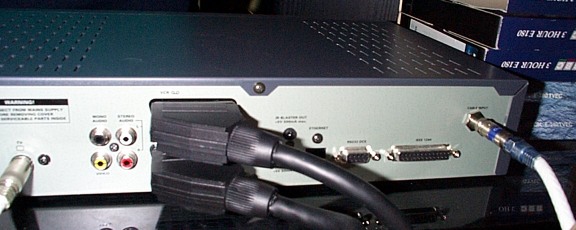

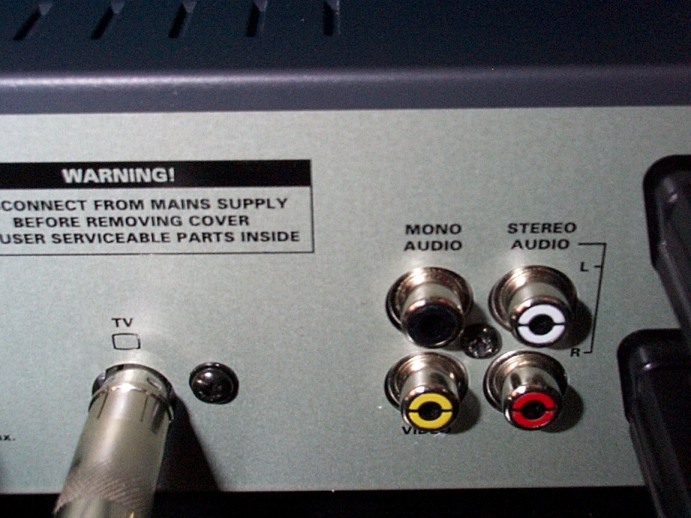

  • Rear Images: 1 - 2 - 3 - 4
